Model No.: i-8506-M5BD

Product Description

Product Description

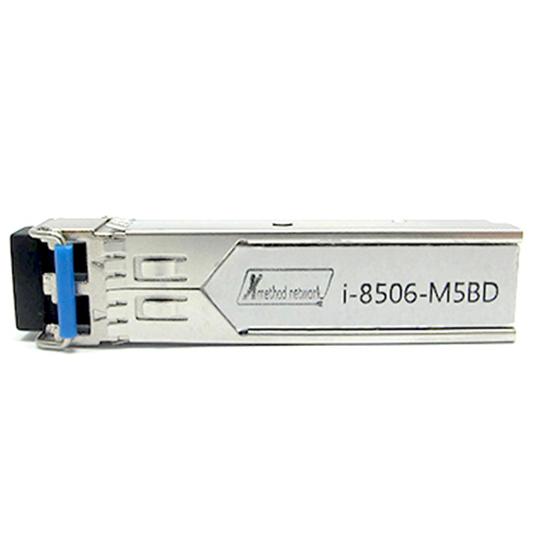

i-8506-M5BD

1.25Gb/s 850nm Multi-mode SFP Transceiver

Product Features

l Up to 1.25Gbps Data Links

l VSCL laser transmitter and PIN photo-detector

l Metal enclosure, for lower EMI

l 2-wire interface with integrated Digital Diagnostic monitoring

l Hot-pluggable SFP footprint

l Compliant with SFP MSA with LC/UPC type connector

l Single 3.3V power supply

l Case operating temperature range:0°C to 70°C


622m Base Sfp Duplex 850nm 550m Transeciver 4 540x622m Base Sfp Duplex 850nm 550m Transeciver 3 540x

Applications

l 1G Fiber channel

l Switch to Switch Iinterface

l Gigabit Ethernet

l Switch Backplabe Application

l Router/Server Interface

l Other Optical Links

Absolute Maximum Ratings

Parameter

Symbol

Min

Typ

Max

Unit

Note

Storage Temperature

Ts

-40

-

85

ºC

Storage Ambient Humidity

HA

5

-

95

%

Operating Relative Humidity

RH

-

-

85

%

Power Supply Voltage

VCC

-0.3

-

4

V

Signal Input Voltage

Vcc-0.3

-

Vcc+0.3

V

Recommended Operating Conditions

Parameter

Symbol

Min

Typ

Max

Unit

Note

Case Operating Temperature

Tcase

0

-

70

ºC

Without air flow

Power Supply Voltage

VCC

3.14

3.3

3.47

V

Power Supply Current

ICC

-

300

mA

Data Rate

BR

1250

Mbps

Transmission Distance

TD

-

550

m

Coupled fiber

Multi mode fiber

62.5/125um MMF

Optical Characteristics

Parameter

Symbol

Min

Typ

Max

Unit

Ref.

Transmitter

Output Opt. Pwr

POUT

-9

-3

dBm

Optical Wavelength

λ

830

850

860

nm

Optical Extinction Ratio

ER

9

dB

RIN

RIN

90

100

110

OHM

Output Eye Mask

Compliant with IEEE 802.3Z (class 1 laser safety)

Receiver

Rx Sensitivity

RSENS

-17

dBm

Input Saturation Power (Overload)

Psat

0

dBm

Wavelength Range

λC

770

850

860

nm

LOS De -Assert

LOSD

-18

dBm

LOS Assert

LOSA

-35

dBm

LOS Hysteresis

0.5

2

6

dB

Electrical Characteristics

Parameter

Symbol

Min

Typ

Max

Unit

Note

Supply Voltage

Vcc

3.14

3.3

3.46

V

Supply Current

Icc

300

mA

Transmitter

Input differential impedance

Rin

100

Ω

1

Single ended data input swing

Vin,pp

180

700

mV

Transmit Disable Voltage

VD

Vcc1.3

Vcc

V

Transmit Enable Voltage

VEN

Vee

Vee+ 0.8

V

2

Transmit Disable Assert Time

10

us

Receiver

Differential data output swing

Vout,pp

300

850

mV

3

Data output rise time

tr

28

ps

4

Data output fall time

tf

28

ps

4

LOS Fault

VLOS fault

Vcc1.3

VccHOST

V

5

LOS Normal

VLOS norm

Vee

Vee+0.8

V

5

Power Supply Rejection

PSR

100

mVpp

6

Notes:

1. Connected directly to TX data input pins. AC coupled thereafter.

2. Or open circuit.

3. Into 100 ohms differential termination.

4. These are unfiltered 20-80% values

5. Loss Of Signal is LVTTL. Logic 0 indicates normal operation; logic 1 indicates no signal detected.

6. Receiver sensitivity is compliant with power supply sinusoidal modulation of 20 Hz to 1.5 MHz up to specified value applied through the recommended power supply filtering network.

Pin Descriptions

1g Duplex Module

Pin out of Connector Block on Host Board

Pin

Symbol

Name/Description

Note

1

VEET

Transmitter Ground (Common with Receiver Ground)

1

2

TFAULT

Transmitter Fault.

2

3

TDIS

Transmitter Disable. Laser output disabled on high or open.

3

4

SDA

2-wire Serial Interface Data Line

4

5

SCL

2-wire Serial Interface Clock Line

4

6

MOD_ABS

Module Absent. Grounded within the module

4

7

RS0

Rate Select 0

5

8

LOS

Loss of Signal indication. Logic 0 indicates normal operation.

6

9

RS1

No connection required

1

10

VEER

Receiver Ground (Common with Transmitter Ground)

1

11

VEER

Receiver Ground (Common with Transmitter Ground)

1

12

RD-

Receiver Inverted DATA out. AC Coupled

13

RD+

Receiver Non-inverted DATA out. AC Coupled

14

VEER

Receiver Ground (Common with Transmitter Ground)

1

15

VCCR

Receiver Power Supply

16

VCCT

Transmitter Power Supply

17

VEET

Transmitter Ground (Common with Receiver Ground)

1

18

TD+

Transmitter Non-Inverted DATA in. AC Coupled.

19

TD-

Transmitter Inverted DATA in. AC Coupled.

20

VEET

Transmitter Ground (Common with Receiver Ground)

1

Notes:

1. Circuit ground is internally isolated from chassis ground.

2. TFAULT is an open collector/drain output, which should be pulled up with a 4.7kΩ– 10 kΩ resistor on the host board if intended for use. Pull up voltage should be between 2.0V to Vcc + 0.3V.A high output indicates a transmitter fault caused by either the TX bias current or the TX output power exceeding the preset alarm thresholds. A low output indicates normal operation. In the low state, the output is pulled to <0.8V.

3. Laser output disabled on TDIS >2.0V or open, enabled on TDIS <0.8V.

4. Should be pulled up with 4.7kΩ- 10kΩ on host board to a voltage between 2.0V and 3.6V. MOD_ABS pulls line low to indicate module is plugged in.

5. Internally pulled down per SFF-8431 Rev 4.1.

6. LOS is open collector output. It should be pulled up with 4.7kΩ – 10kΩ on host board to a voltage between 2.0V and 3.6V. Logic 0 indicates normal operation; logic 1 indicates loss of signal.

Digital Diagnostic Functions

Xmethod Network iP-8506-M5BD transceivers support the 2-wire serial communication protocol as defined in the SFP MSA.

The standard SFP serial ID provides access to identification information that describes the transceivers capabilities, standard interfaces, manufacturer, and other information.

Additionally, Xmethod Network SFP transceivers provide a unique enhanced digital diagnostic monitoring interface, which allows real-time access to device operating parameters such as transceiver temperature, laser bias current, transmitted optical power, received optical power and transceiver supply voltage. It also defines a sophisticated system of alarm and warning flags, which alerts end-users when particular operating parameters are outside of a factory set normal range.

The SFP MSA defines a 256-byte memory map in EEPROM that is accessible over a 2-wire serial interface at the 8 bit address 1010000X (A0h). The digital diagnostic monitoring interface makes use of the 8 bit address 1010001X (A2h), so the originally defined serial ID memory map remains unchanged.

The operating and diagnostics information is monitored and reported by a Digital Diagnostics Transceiver Controller (DDTC) inside the transceiver, which is accessed through a 2-wire serial interface. When the serial protocol is activated, the serial clock signal (SCL, Mod Def 1) is generated by the host. The positive edge clocks data into the SFP transceiver into those segments of the E2PROM that are not write-protected. The negative edge clocks data from the SFP transceiver. The serial data signal (SDA, Mod Def 2) is bi-directional for serial data transfer. The host uses SDA in conjunction with SCL to mark the start and end of serial protocol activation. The memories are organized as a series of 8-bit data words that can be addressed individually or sequentially.


Host - Transceiver Interface Block Diagram

Duplex Module 550m

Outline Dimensions

Pluggable form factor specification.

1g Duplex Module 550m

Regulatory Compliance

Feature

Reference

Performance

Electrostatic dischargeESD

IEC/EN 61000-4-2

Compatible with standards

Electromagnetic Interference (EMI)

FCC Part 15 Class B EN 55022 Class B (CISPR 22A)

Compatible with standards

Laser Eye Safety

FDA 21CFR 1040.10, 1040.11 IEC/EN 60825-1, 2

Class 1 laser product

ROHS

2002/95/EC

Compatible with standards

EMC

EN61000-3

Compatible with standards

Ordering information

Part Number

Product Description

iP-8506-M5BD

850nm SFP, 1Gbps, 550m, 0ºC ~ +70ºC, DDM

Revision History

Revision

Notes

Authors

Checked

Approval

Date

Rev A0

New release

Granger Leung

2018.09.19
